BT/STR Corner Rounging End Mill

Specification

Spec.	l1	l2	D	Flutes	Insert	Weight (KGS)
BT40-STR3.5R16-90L-2T	90	40	16	2	RD..0702	1.29
BT40-STR3.5R16-120L-2T	120	65	16	2	RD..0702	1.30
BT40-STR3.5R20-90L-3T	90	45	20	3	RD..0702	1.32
BT40-STR3.5R20-120L-3T	120	70	20	3	RD..0702	1.33
BT40-STR3.5R25-90L-3T	90	40	25	3	RD..0702	1.36
BT40-STR3.5R25-120L-3T	120	70	25	3	RD..0702	1.41
BT40-STR3.5R30-120L-4T	120	85	30	4	RD..0702	1.52
BT40-STR5R30-90L-3T	90	55	30	3	RD..1003	1.31
BT40-STR5R35-90L-4T	90	60	35	4	RD..1003	1.42
BT40-STR5R35-120L-4T	120	85	35	4	RD..1003	1.59

• Unit of Length (mm)

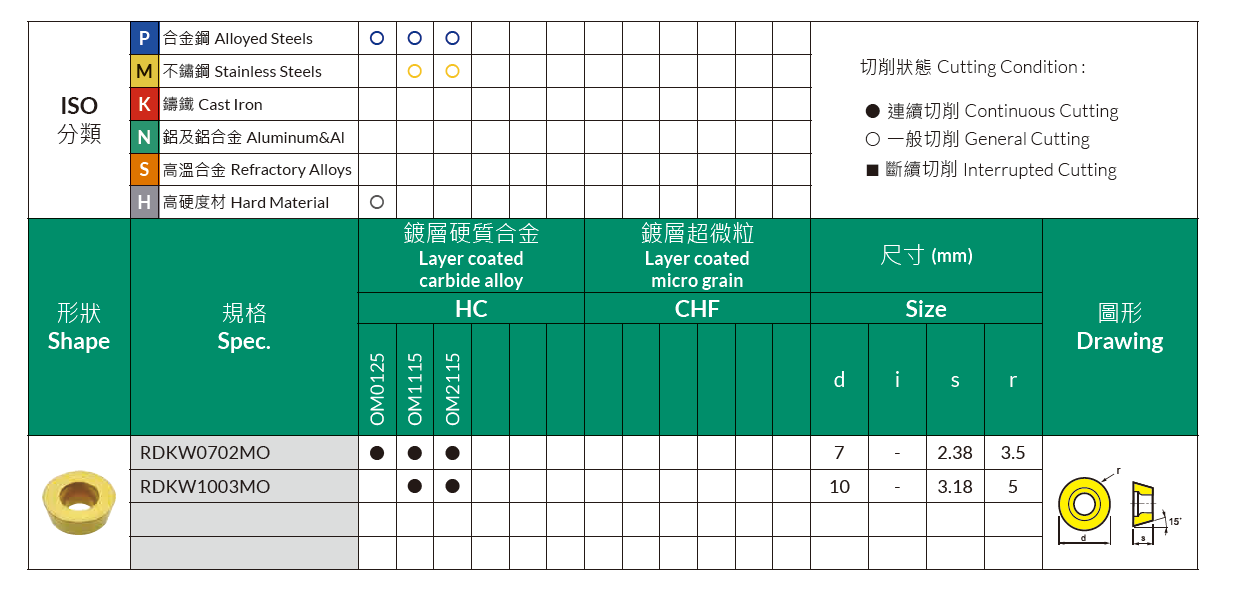

Insert	Screw	Wrench	Clamp Screw	Clamp Wrench	Torque (N.m)
RD..0702	M2.5-6.45-3.7-43	T8	M3.5-8.0-5.0-60	T15	3.0
RD..1003	M3.5-8.0-5.0-60	T15	M4-8.0-5.7-60	T15	3.0
