HCM Aluminum Changeable Milling Cutter
- Light-weight aluminum body.
- V-groove positioning for superior stability.
- Axial dynamic balance and through-hole coolant system.
- Adjustable for micrometer.
"Insert seat needs to be purchased separately!"
Specification
Spec. | D | L | d | Flutes | Spindle speed max | N.W | G.W |
|---|---|---|---|---|---|---|---|
HCM-50-FMB16-6T-AB-C | 50 | 48 | 16 | 6 | max. 33000rpm | 0.20 | 1.26 |
HCM-63-FMB22-8T-AB-C | 63 | 48 | 22 | 8 | max. 33000rpm | 0.30 | 1.40 |
HCM-80-FMB27-10T-AB-C | 80 | 50 | 27 | 10 | max. 33000rpm | 0.48 | 1.60 |
HCM-100-FMB32-14T-AB-C | 100 | 50 | 32 | 14 | max. 29500rpm | 0.81 | 2.02 |
HCM-125-FMB40-18T-AB-C | 125 | 63 | 40 | 18 | max. 25500rpm | 1.88 | 3.68 |

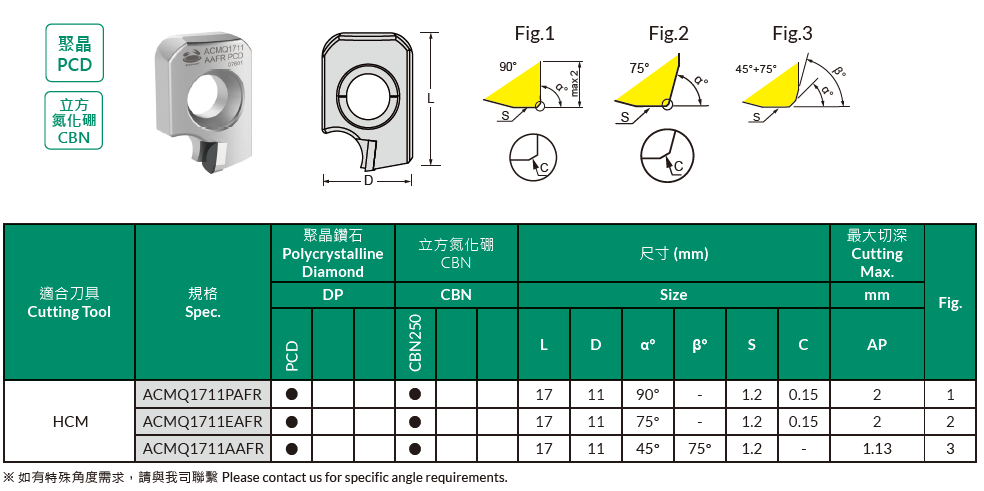

HCM Insert Seat
HCM Insert Seat
HCM Indexable Insert Seat
HCM Insert Base Seat
